Specifications
Available Finish
Supplied in 3 metre lenghts.
| Available Finish | Code |
|---|---|
| PreGal | PG |
| Stainless Steel | SS |
| Hot Dip Galvanised (made to order) | H |
| Ordering Code | Height mm | Width mm |
|---|---|---|
| BCM150_ | 50 | 150 |
| BCM300_ | 50 | 300 |
| BCM450_ | 50 | 450 |
| BCM600_ | 50 | 600 |
Information

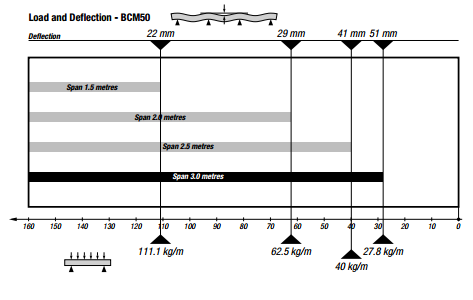

Load and Deflection
| Span | Load Rating | Deflection |
|---|---|---|
| 1.5m | 111kg/m | 22mm |
| 2.0m | 62kg/m | 29mm |
| 2.5m | 40kg/m | 41mm |
| 3.0m | 27.8kg/m | 51mm |
BCM has been tested in accordance with the Nema requirements. The data displayed is based on physical test results of a 600 wide section and may vary for other widths. The Deflections have been provided as a guide based on continuous spans, and cannot be applied to end spans. Data provided assumes that the installation will be carried out in accordance with Nema VE2. Non compliance may affect the overall product performance.
